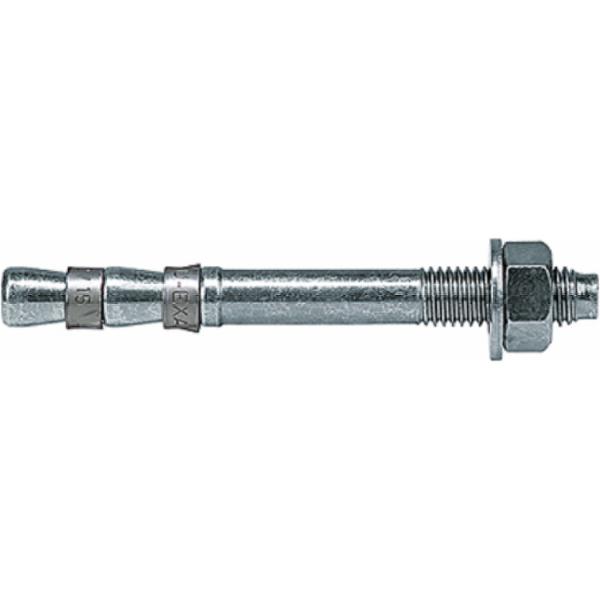

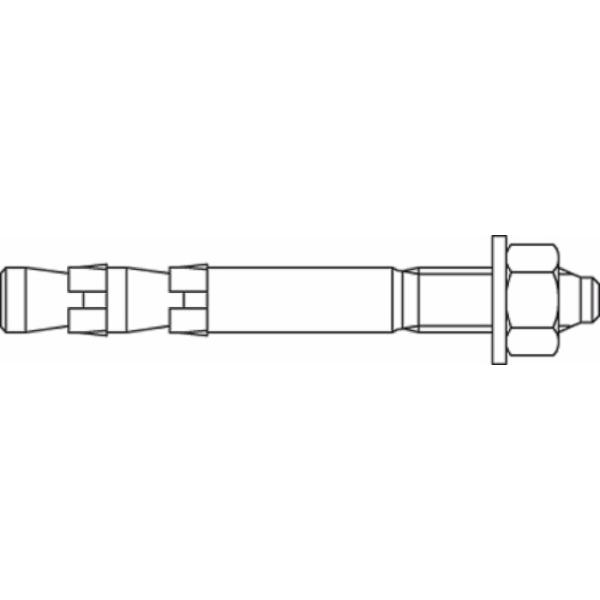

FISCHER 97734 express anchor EXA 8/28 (8x98) electrolytically galvanised steel

Product description:

• The fischer bolt anchor EXA is a particularly installation-friendly steel anchor for anchorings in non-cracked concrete.
• In the zinc-plated steel design, the bolt anchor is suitable for the anchoring of railings, cantilevers, and cable trays inside.
• The two expansion clips increase the expansion range and reduce the torque slippage.
• This saves time during the installation process.
• The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

Top Features

• The bolt anchor with the two expansion clips: fast, simple fixing.
• Less assembly time due to lower torque slippage.
• When hammering in, the drive-in pin protects the thread from damage. This saves time during installation and removal.

Advantages

• The two clips increase the expansion range and reduce the torque slippage. This allows for a fast and simple installation.
• The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.
• The short version EXA K*) can be used in thinner components due to the low anchorage depth.

Applications

• Steel constructions
• Guard rails
• Consoles

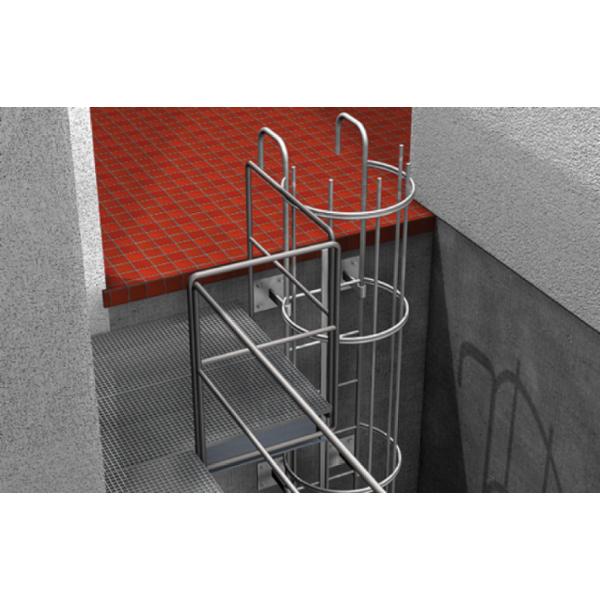

• Ladders
• Cable trays

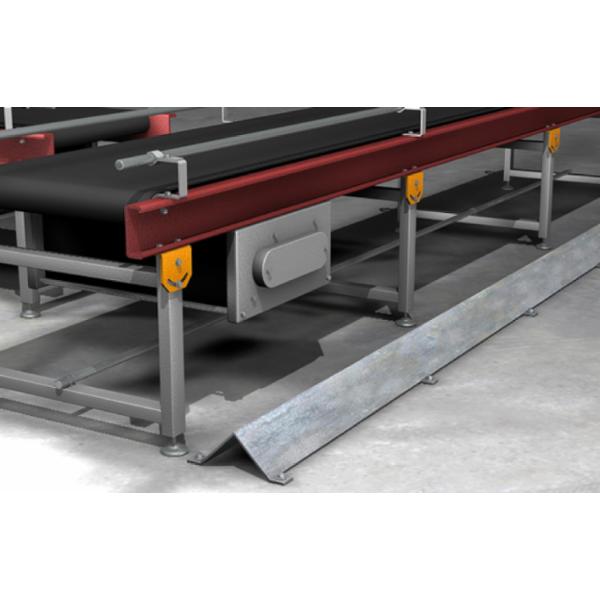

• Machines
• Staircases
• Gates
• Façades

Versions

• Zinc-plated steel

Building materials

• Approved for:
  • Concrete C20/25 to C50/60, non-cracked
• Also suitable for:
  • Concrete C12/15
  • Natural stone with dense structure

Functioning

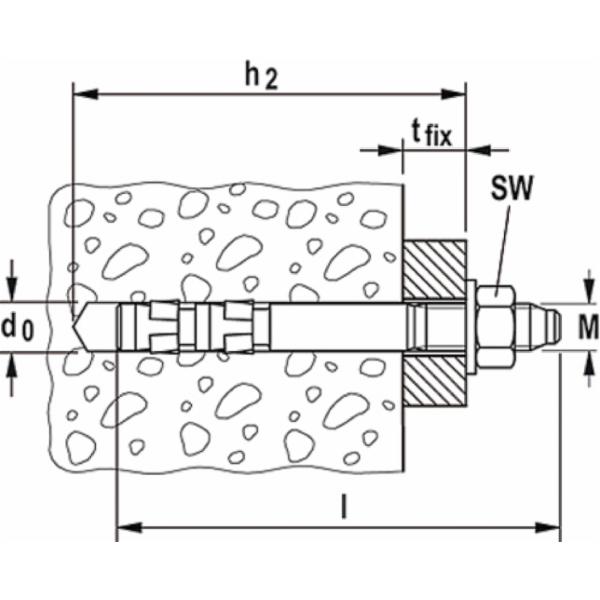

• The EXA is suitable for pre-positioned and push-through installation.
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
• When applying the torque, the cone bolt is pulled into the expansion clips and expands these against the drill hole wall.
• In the case of series installation, we recommend using the FABS bolt anchor setting tool.
