With milling ribs and SPAX CUT point, synthetic coating
Stainless steel A4 III
Application:
Lateral pressure reinforcement
Flexibly connected bending beams
Lateral tension reinforcements
Advantages:
Absorption of high tensile and compressive forces by being fully threaded
Absorption of particularly high pulling forces compared to partial threaded screws

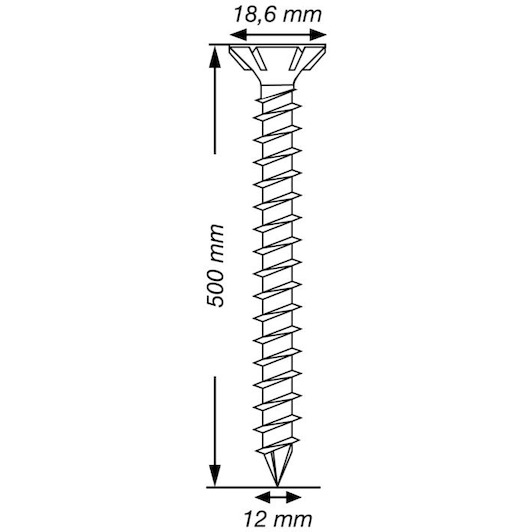

Wide spectrum of applications through screw lengths of up to 600 mm
Cost-effective alternative to bolt connections, formed metal sheet parts and lateral reinforcement through glued on reinforcement panels or glued in threaded bars
Approved by building authorities:
Under Z-9.1-519 as wood connector
Special properties:
SPAX CUT point: precision placement, allows screwing in without pre-drilling (wood-dependent), effectively reduces splitting of the wood
Full thread: absorption of high tensile and compressive forces
Stainless steel A4 III: Permanent protection against corrosion

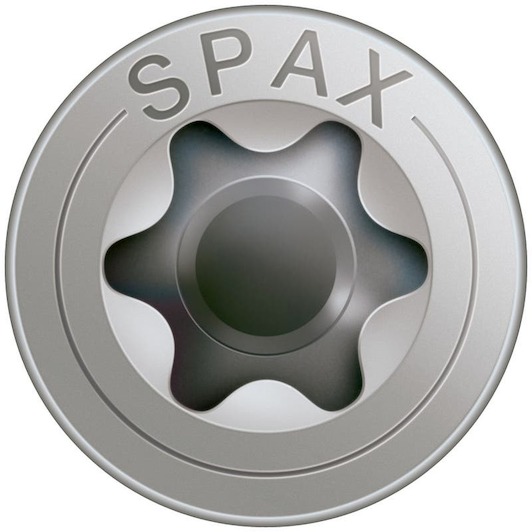

T-STAR plus: secure bit grip, no cam-out effect, optimal force transmission
Features:
SPAX typical ground serrations: quick and secure fastening
Flat countersunk head SPAX-RA with milling ribs: clean, flush sinking of the head
