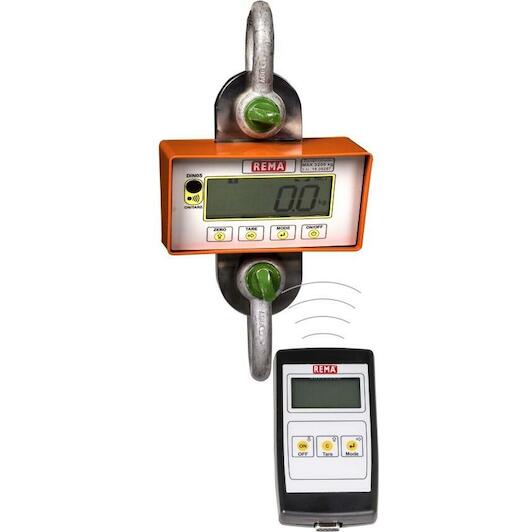

REMA DSD05TX/RX-3.2T dynamometer met afleesbare afstandsbediening 3,2 ton - 1513005

Artikelnummer leverancier: REMA 1513005 | EAN 8717365111563
 2.394,10 incl. BTW
€ 1.978,59 excl. BTW (incl. alle milieubijdrages)
Op bestelling: bezorgd vanaf 03/12/2026
stuk

  • Bezorging door DHL


€ 2.394,10
incl. BTW

Productinformatie

Belangrijkste eigenschappen volgens onze expert

  • Max. belasting: 3200 kg
  • Aflezing: 1 kg

Productomschrijving

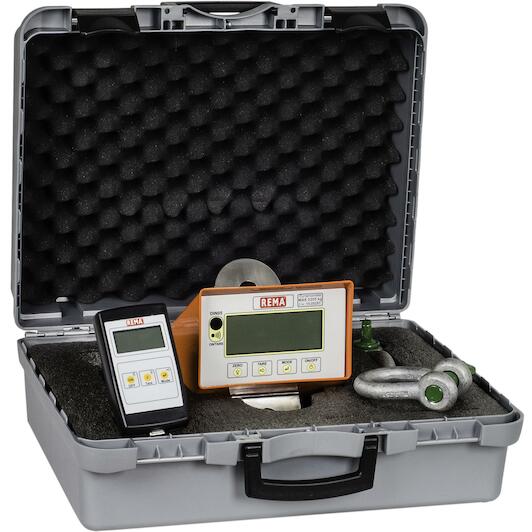

Levering inclusief kunststof koffer, handleiding en kalibratie rapport.

Mechanische eigenschappen

  • Aluminium huis.
  • Gelegeerd stalen trekkrachtunit.
  • Proefbelasting 2 x WLL (zonder ontregeling trekkrachtunit).
  • Veiligheidsfactor 5 x WLL.
  • International Protection Rating/Ingress Protection: IP65 (EN60529).
  • Elektrische specificaties
  • Alkaline batterij (3 x AA type).
  • Bedrijfsduur ca 180 uur.
  • Elektronische specificaties
  • Omgevingstemperatuur tussen -5°C tot +55°C.
  • Nauwkeurigheid tot ca 0.1% van de afleeswaarde.
  • Batterij indicator.
  • Functionele specificaties
  • Automatische nulstelling bij inschakelen.
  • Digitale nul- en gewichtsinstelling.
  • Digitale stabilisatiefilter met een grotere demping van gewichtsschommelingen
  • Tarreer, piek- en blokkeerfunctie.
  • Eenheden selectie unit (kg - N - kN - lb).
  • Automatisch uitschakelen.

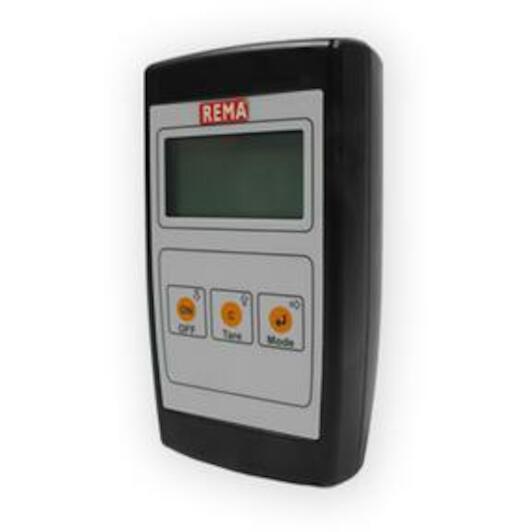

  • RX-PORT elektrische specificaties
  • Alkaline batterijen (3 x AA type).
  • Standtijd ca 150 uur.
  • Batterij-indicator.
  • RX-PORT elektronische specificaties
  • LCD display met 5 posities, 12 mm cijferhoogte.
  • 868 MHz frequentieregeling.
  • Omgevingstemperatuur -5°C tot +55°C.
  • RS232 poort voor printer- of PC-verbinding.
  • TX-LOAD elektrische specificaties
  • Zendbereik max. 50 m.
  • TX-LOAD elektronische specificaties
  • 868 MHz frequentieregeling.

Optie

  • Harpsluiting vanaf 10T.

Alle eigenschappen

Max. belasting
3200 kg
Aflezing
1 kg
Resolutie
1 kg
Gewicht
4.2 kg

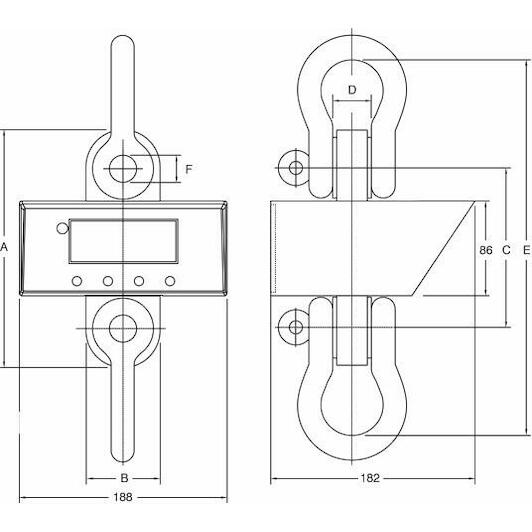

E
269 mm
A
199 mm
D
25 mm
Veilige werklast
3200 kg
B
69 mm
F
20 mm
C
130 mm
Type harpsluiting
3.25 in. t
  • Merk REMA
  • EAN 8717365111563
  • Artikelnummer leverancier REMA 1513005
