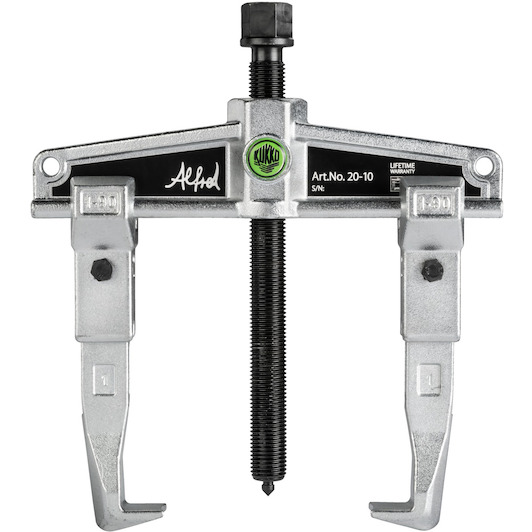

KUKKO 20-2 two-arm trigger 160mm

Name: KUKKO 20-2 two-arm trigger 160mm
Brand: KUKKO
SKU: 41230003
Price: 201.95 EUR
Availability: InStock

Supplier number: KUKKO 20-2 | EAN 4021176009501

201.95 tax incl.

€166.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

✆ Talk to a specialist

Efficient extraction with the Kukko 20-2

Practical benefits

Versatile internal and external pulling: You remove bearings, gears, and pulleys effortlessly by reversing the hooks for internal or external grip applications.
Smooth parallel arm adjustment: You set the reach up to 160 mm precisely as the arms slide freely and stay parallel along the crossbar.
Powerful controlled mechanical spindle: You deliver smooth and direct force with the heavy-duty threaded spindle to protect delicate components during disassembly.

In a nutshell

The right choise for

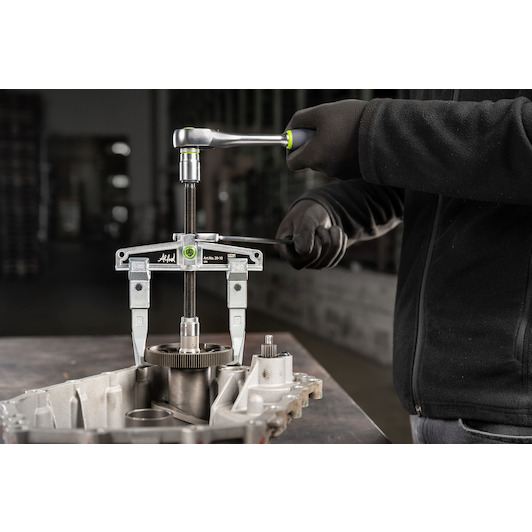

With the Kukko 20-2 2-jaw universal puller, you remove press-fit bearings, gears, pulleys, and discs from shafts with smooth control. Reversible jaws allow you to switch easily between external and internal extraction tasks in the workshop. The two parallel jaws slide continuously along the crossbeam, letting you adjust the spread up to 160 mm and reach up to 150 mm to fit your specific workpiece. Driven with an sw 22 mm wrench, the heavy-duty mechanical pressure spindle provides uniform force distribution to extract components cleanly without damaging shafts or surrounding parts.

Product information FAQ

€201.95

In stock - tax incl.

Key features according to our expert

Max. width: 160 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 150 mm

Scope of delivery

2-150-P:Standard hitch (pair, clamping depth 150 mm)
20-2-T:Bridge for 2-arm universal puller 20-2
620260:Double-sided spindle tip for mechanical pressure spindles M20, G1/2", G5/8", G3/4"
621220:Spindle Ø 20.955 mm for spindle Thread G 1/2" / 14, 220 mm length, 5.4 mm Screw thread

Product description

The 2-arm universal puller is used for pulling bearings, gears and discs in all common sizes for Craft, workshop and Industry. It can be used to loosen any part sitting on a shaft and freely accessible from outside. Equipped with robust and adjustable standard hooks, this all-round puller ensures particularly safe, damage-free Dismantling both when pulling out and pulling in.

Application

For pulling bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 160 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 150 mm

Brand KUKKO
41230003
EAN 4021176009501
Supplier number KUKKO 20-2

Frequently asked questions about this product

Answered by specialists

What are the maximum spread and reach of the Kukko 20-2?: This puller has a maximum spread width of 160 mm and a reach depth of 150 mm.
What wrench size is required to operate the spindle?: You need a 22 mm wrench or socket (SW 22 mm) to operate the mechanical spindle.
Can this puller be used for internal pulling?: Yes, reversing the pulling jaws on the crossbeam allows use for both external and internal extraction.
Is the Kukko 20-2 a hydraulic puller?: No, this model features a mechanical pressure spindle and is not hydraulic.
What applications is this universal puller designed for?: It is designed for safely removing press-fit bearings, gears, discs, and pulleys from shafts.
